I. Selecting Solar Mounting Structures

Carefully selecting solar mounting structures is crucial in maintaining solar panel performance and system longevity. This process involves geological surveys, soil condition analysis, fixed tilt and tracker design considerations, and recommendations from advanced modelling tools.

Foundation Requirements

Our geological surveys must be performed to determine the optimal type of foundation for the solar mounting system, assessing:

FactorsRecommendations
Soil acidityApply protective coating if needed
N valuesIndicative of soil strength
GroundwaterPrevent corrosion
Soil conditionsDetailed analysis

Plant Design Considerations

The mounting structures must account for the planned plant design:

  • Fixed tilt: Angled at optimal degree for site location
  • Trackers: Follow sun throughout the day, best suited for flat sites

Analyse topography to account for complex terrain:

  • Foundation pile lengths
  • Model shadowing
  • Streamline parts and installation

Automated Recommendations

Leverage advanced modelling software like Rated Power to automate:

  • Plant layout optimization
  • Component selection for environmental conditions
  • Cost, performance and profitability projections

These tools provide data-driven recommendations to optimize mounting structure selection based on the project goals and constraints.

Their projections help determine required:

  • Pole diameter and depth
  • Fastenings rated for extreme weather
  • Reinforcements to prevent collapse

Carefully weighing these considerations enables selection of cost-effective, durable solar mounting systems able to withstand decades of operation.

Click Here to Learn More

II. Mounting Structure Types

The soil conditions and operational environment dictate the optimal mounting structure. Main options:

Ballast Mounts

Ballast Mounts Mounting Structure

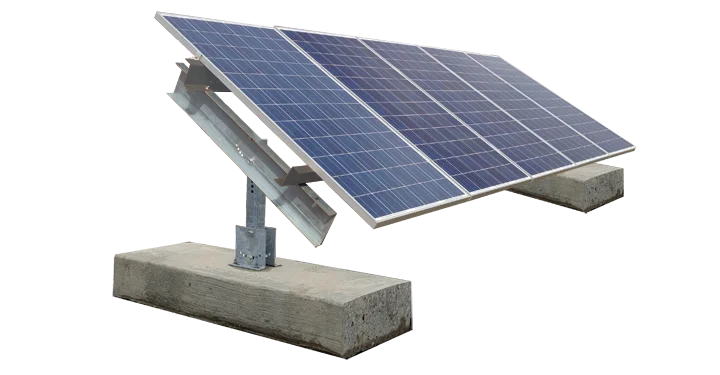

  • Pre-cast concrete block
  • Rest on compacted soil
  • Residential rooftop installations
  • Avoid need to drill/excavate

Helical Piles

Mounting Structure Helical Piles
  • Driven into soil conditions
  • Withstand uplift forces
  • Resist expansion and strong winds
  • Provide load-bearing capacity

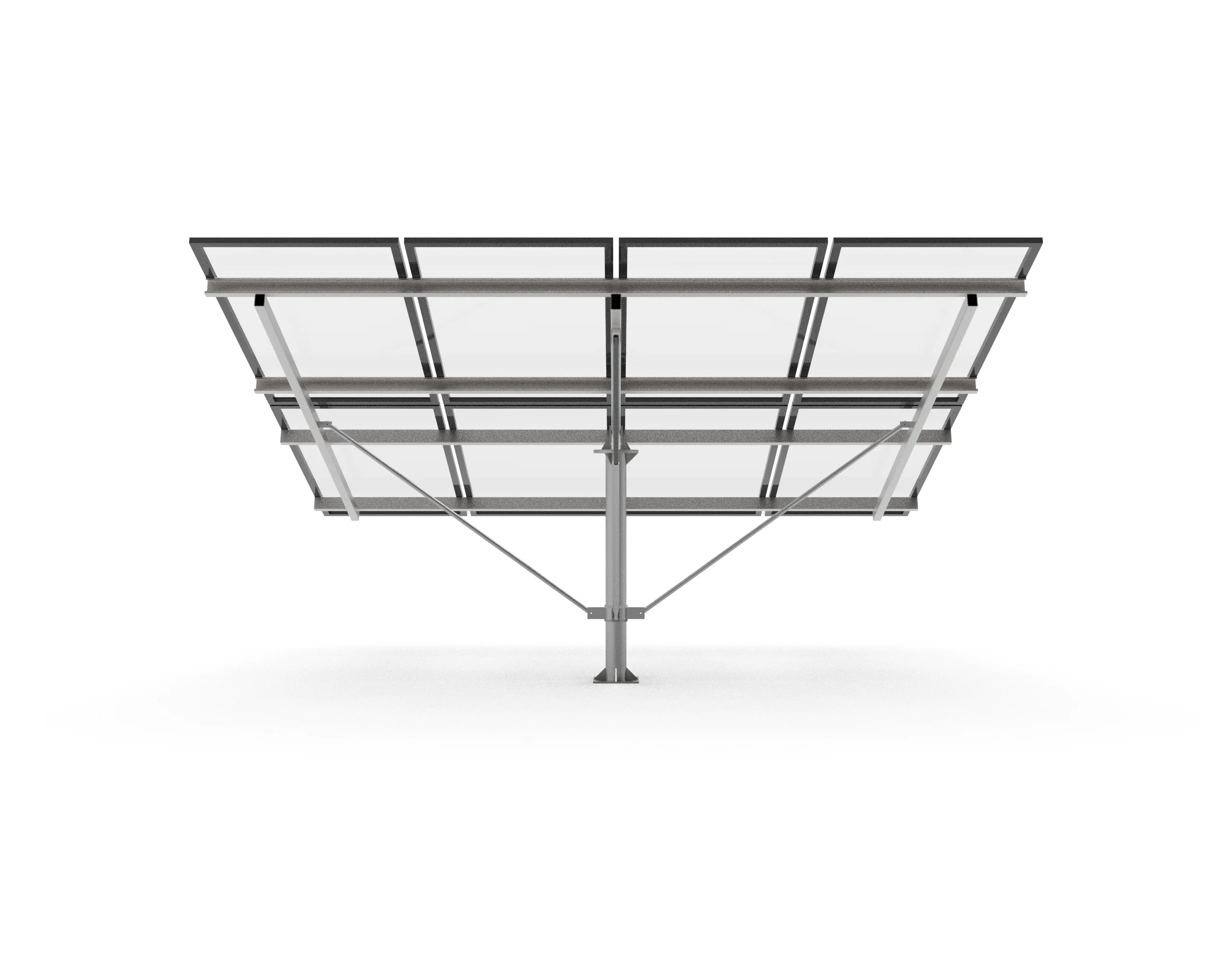

Pole Mounts

Pole Mounts Mounting Structure
  • Steel poles with concrete anchors
  • Simpler than ballast mounts
  • Multi-pole systems
  • Single row of panels
  • Ease large project adjustments

Ground Screws

Ground Screws Mounting Structure
  • Soil conditions:
  • Compacted
  • Heavy clay
  • Rocky surface
  • Minimal earthwork and engineering
FactorConsiderations
Steep terrainScrews have limited gradient suitability
Granular soilsProvide less stability

Read More

Concrete Foundations

  • Ideal for:
  • Brownfield sites
  • Capped landfills
  • Wetland sites
  • Minimally invasive mounting

Careful analysis of the site geological surveys and planned solar farm size determines optimal structure types.

Learn More

III. Structure Installation

Once the mounting structure type is selected, proper installation is key to ensuring solar farm performance and longevity.

Location Planning

  • Survey site topology
  • Mark locations for:
  • Mounting structure base
  • Foundation piles

Considerations:

  • Access for construction equipment
  • Optimizing spacing and tilt angles
  • Minimizing shading

Foundation Installation

Method depends on structure type:

  • Ballast
  • Level ground
  • Position blocks
  • Bolt to frames
  • Piles:
  • Drive into ground
  • Depth based on soil, loads
  • Attach to structure
  • Screws:
  • Mechanically screw in
  • Add torque as needed
  • Concrete:
  • Cast foundation
  • Cure properly
  • Attach racks

For small sites, hand tools can be used. Larger solar farms require:

  • Excavation equipment
  • Pile driving machinery
  • Cement pouring

Other Considerations

  • Schedule installs around rain to allow proper curing
  • Check for shift/corrosion periodically
  • Assess after extreme weather events

Proper base structure installation ensures the solar farm can withstand environmental conditions for the project lifetime.

IV. Failure Modes

Improperly designed or installed mounting structures can fail, causing solar farm damage or collapse.

Design Failures

Inadequate design is a common failure mode:

  • Incorrect tilt angle
  • Reduces energy generation
  • Accelerates weathering
  • Insufficient corrosion planning
  • Shortens lifespan
  • Risks collapse
  • Not accounting for environmental conditions
  • Wind, snow, rain loads
  • Seismic factors
  • Lightning strikes

Use advanced modelling tools during design to predict and address these factors.

Installation Failures

Faulty foundation installation causes most failures:

  • Improper pile depth
  • Loosens over time
  • Insufficient anchor
  • Inadequate curing
  • Weakens concrete
  • Cracks under load
  • Poor leveling
  • Twists structure
  • Unbalances loads

Conduct pull-out testing after install to validate integrity.

Impact

  • Panel damage from detached arrays
  • Destabilized ground
  • Risks landslides
  • Further equipment damage
  • Lost energy generation
  • While repairs conducted
  • If decommissioned

Preventing mounting structure failure is crucial for utility-scale solar farm optimization. Adequate design and installation is key.

V. Advanced Modelling

We specialized solar design software leverages advanced algorithms to streamline and optimize mounting structure selection.

Key Features

  • 3D site modelling
  • Analyse terrain
  • Identify ideal layout
  • Automated engineering
  • Foundation sizing
  • Pull-out calculations
  • Structural analysis
  • Machine learning
  • Data from prior projects
  • Improves recommendations
  • Custom reporting
  • Details selections
  • Installation guidelines

Automated Deliverables

Extract key project outputs:

  • Bill of materials
  • Parts, quantities, costs
  • Permit drawings
  • Submit directly
  • Installation plans
  • Equipment needs
  • Construction schedule

Continuously optimize as design evolves:

  • Adjust for equipment purchases
  • Update code compliance
  • Reruns in seconds

Why automate?

  • Eliminates error-prone manual work
  • Provides data-backed recommendations
  • Saves significant time and costs
  • Enables design of high-performing mounting solution

Leveraging advanced tools ensures selection of ideal, cost-effective mounting systems for each unique solar site.

VI. Next Steps

Properly designing and implementing solar mounting structures is critical for project success. Key recommended next steps:

Detailed Site Analysis

Perform in-depth site surveys assessing:

  • Soil conditions
  • Composition
  • Load capacities
  • Topography
  • Height variations
  • Obstacles
  • Accessibility
  • Construction equipment
  • Maintenance needs

This data informs ideal mounting structure planning.

Design Optimization

Leverage advanced algorithms to automate optimizing for:

  • Energy generation projections
  • Land usage efficiency
  • LCOE minimization
  • Custom objectives

These tools run iterative simulations to determine optimal:

  • Tilt angles
  • Foundation sizing
  • Pole configuration
  • Tracking capabilities

Streamlining mounting structure design enables maximized ROI.

Demo Request

See a live demo of data-driven mounting structure optimization in action:

  • Custom 3D site modelling
  • Foundation design
  • Automated BOM generation
  • Performance/cost projection

Understand capabilities before committing, to ensure solution adequacy for specific project needs.

Implementation Planning

With optimized mounting structure selection completed, detailed implementation planning is next:

  • Permitting
  • Grid interconnection
  • Foundation and structure installation
  • Panel mounting
  • Inspection

Proper construction is vital for protecting long-term solar farm durability against extreme weather and maximizing energy generation.

We provide careful planning and leveraging modern solar design tools enables streamlined mounting structure implementations for productive, profitable solar projects.

Solar Mounting Structure Design

Solar Mounting Structure Design

I. Introduction to Solar Mounting Structure Design

Solar Mounting Structure Design

Structura Metal provide a solar mounting structure is a crucial component of any photovoltaic (PV) system installation. Furthermore, this structures purpose is to securely anchor the solar panels while distributing weight and allowing us to orient the panels at the optimal angle to maximize solar radiation capture.

When designing solar mounting structures, we must make the following key considerations:

  • Building Specifications – age, roof type/condition, location.
  • Climate Conditions – wind, snow loads.
  • System Size and Components – number of panels, foundations.
  • Accessibility for installation and maintenance.
  • Safety standards and certifications.

There are two main categories of solar panel mounting structures are:
Rooftop Mounting Structures

Rooftop mounts support themselves using the building itself and are generally a lower-cost solution. Sub-types include:

  • Rail-Based – panels clipped onto rails bolted into roof
  • Rail-Less – panels bolted directly into roof
  • Shared-Rail – rails are shared between panels

These can be used on both sloped and flat rooftops.

Ground-Based Mounting Structures

Ground mounts require foundations but allow more flexibility. Types include:

  • Pole Mounts – structure with vertical pole anchored in concrete
  • Foundation Mounts – vertical posts fixed in excavated foundations
  • Tracking Mounts – structures with 1 or 2 axis tracking
Mount TypeProsCons
RooftopLower cost <br> Use existing structureLimited panels <br> Roof condition dependent
GroundMore panels <br> Flexible layoutHigher cost <br> Site prep required

The mounting structure are also relies on the components like rails, brackets, anchors, and foundations to secure the panels.

II. Rooftop Mounting Structures

Rooftop Mounting Structures

Rooftop solar mounting structures attach directly to the roof surface, which helps to distributes weight and reduces costs by utilizing the existing structural support. The main types of rooftop mounts are:

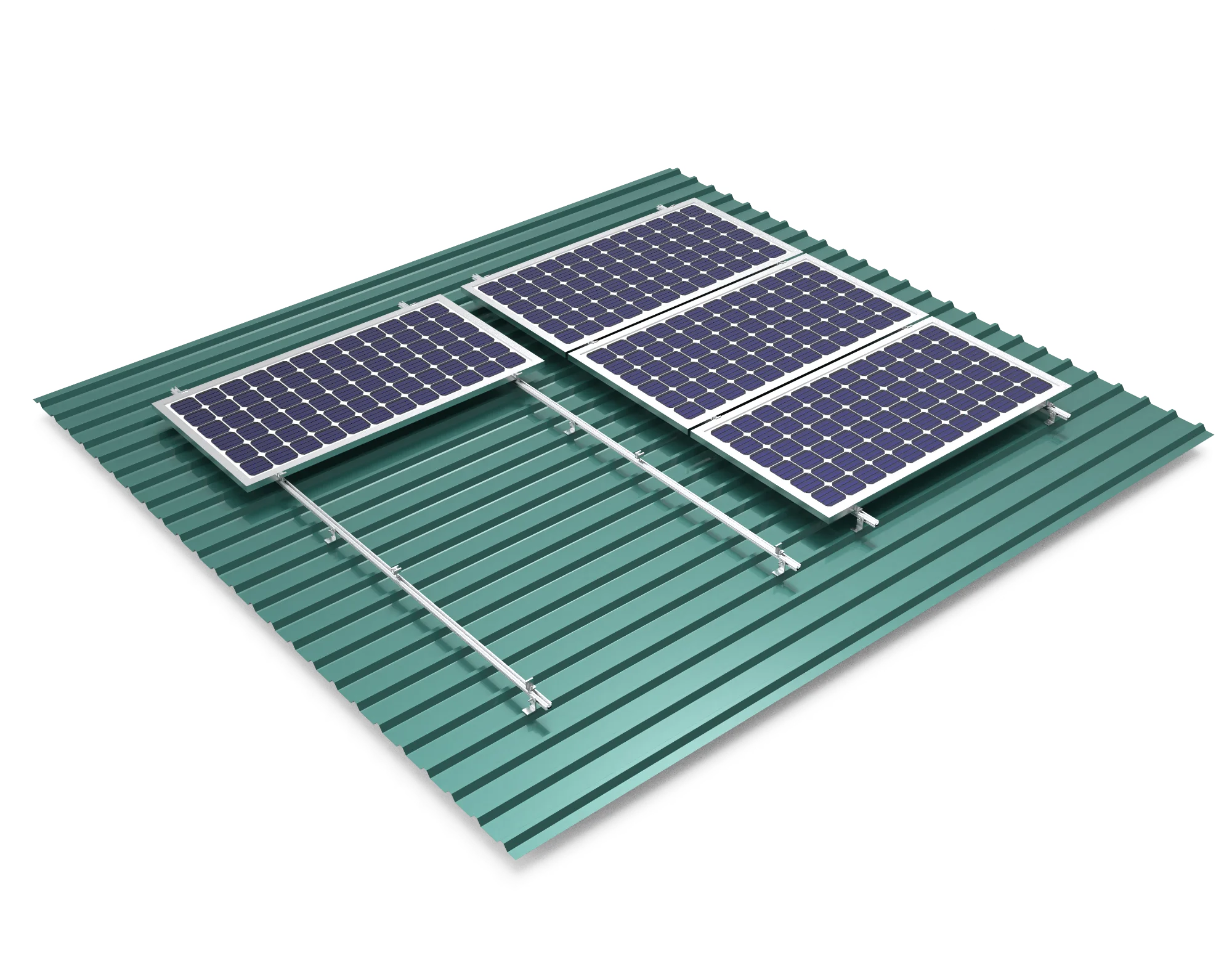

  • Rail-Based Mounting – Solar panels mount onto the rails that bolt into the roof. This is one of the most common rooftop solutions.
  • Rail-Less Mounting – Panels bolt directly to the roof without rails. This reduces materials but requires more skill to install.
  • Shared-Rail Mounting – Solar panels share common rails to reduce rail usage.

Rooftop mounts work for both sloped roof tilted designs and flat roof systems like commercial buildings.

Ballasted Footing Mounts made of concretes blocks help anchor flat roof structures without roof penetration. For pitched roofs, rail-based mounts orient panels at slopes matching the existing roof, while rail-less systems mount the panels in flexible tilted angles.

TypeDescriptionConsiderations
Rail-BasedPanels clip onto roof-bolted railsMost common <br> Easy to install
Rail-LessDirect panel roof mountingLower cost <br> Requires skill
Shared-RailPanels share common railsReduces rails <br> Optimizes installation
BallastedConcrete block anchorsNo penetration <br> For flat roofs

Proper Mounting Structure Design distributes panel weight, resists wind/weather elements, and orients panels properly on the roof.

III. Ground-Based Mounting Structures

Ground Mounting Structures

Ground-mounted solar structures are anchored into the ground itself, providing more flexibility than rooftop solutions. Key types of ground mounts include:

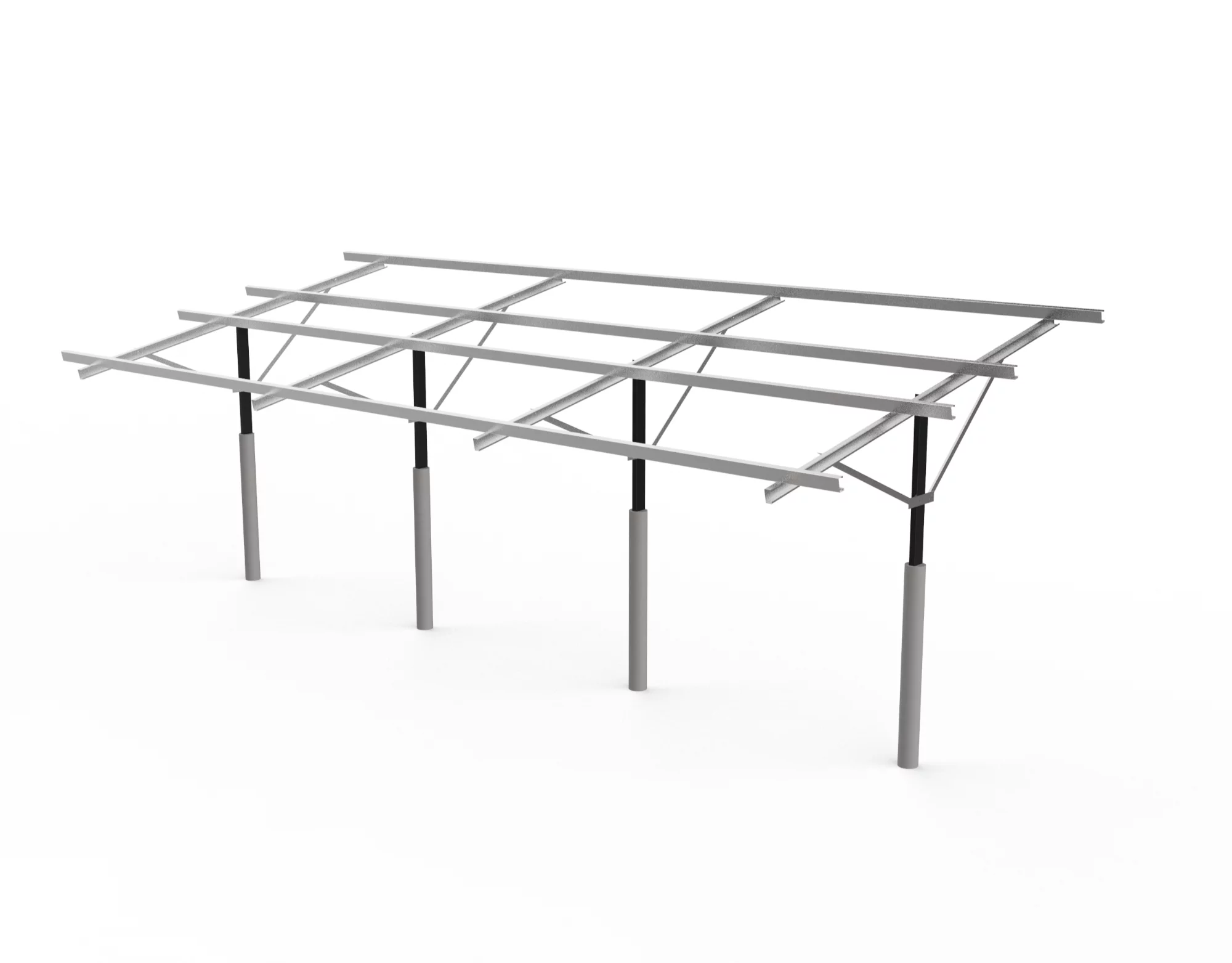

  • Pole Mounts  A simple steel pole and concrete anchor drilled into the ground can support smaller solar panel installations.
  • Foundation Mounts – Vertical posts or pipes are fixed in concrete foundations requiring excavation and soil analysis.
  • Tracking Mounts – Structures with the integrated 1 or 2 axis tracking capability to optimize solar radiation capture.

Multi-pole Mounting utilizes multiple vertical pipe supports to extending in a horizontal line to allow the scaling of larger installations.

The Smart Flower is a compact new solution resembling an opening flower with the integrated tracking solar “petals” for high efficiency generation.

TypeProsCons
Pole MountsLower cost <br> Simple installSmall systems <br> Soil dependent
Foundation MountsLarger systems <br> Adjustable tiltHigh cost <br> Site prep required
Tracking MountsIncreased energy yield <br> Automated sun trackingComplexity <br> Higher cost

Learn More

With ground mounting, factors like soil conditions, wind loads, and frost line depth inform needed foundation specifications. Integrated cable trays and wire runs should also be incorporated into the structural design.

IV. Mounting Structure Components

Mounting Structure Components

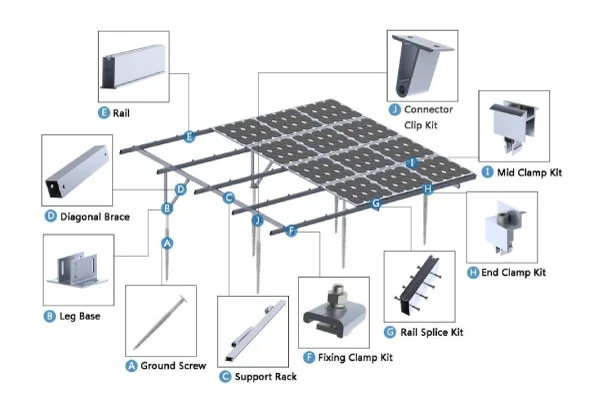

In addition to the main structure frames, solar mounting systems rely on components like rails, brackets, clamps, and anchors to secure panels and transmit loads.

  • Rails & Strut Channels – Horizontal rail structures and strut channels, often aluminium or galvanized steel, provide intermediate support and panel mounting points.
  • Brackets – Adjustable bracket structures attah to rails to angle panels at the optimal tilt.
  • Clamps – End and mid-clamps tightly affix panels along their edges and prevent slippage.
  • Anchors & Foundations – Ground screws, anchor bolts, concrete piers and more keep the mounting frame fixed in place.

Wiring trays and cable management components are also integrated into the composite mounting unit.

ComponentCompositionPurpose
RailsAluminium, steelPanel support & mounting points
BracketsStainless steelSecure and tilt panels
ClampsAluminiumGrip panel edges
AnchorsGalvanized steelFix structure to roof or ground

Proper specification and structural analysis ensures components can withstand anticipated wind, snow loads and thermal stresses across the system’s life.

Regular re-torquring of bolts and monitoring of components for issues like corrosion is key for longevity.

V. Structural Considerations

Careful analysis of building specifications and site conditions informs the customized structural design of solar mounting systems. Key factors include:

  • Building Age & Type – The roofing substrata must have sufficient integrity to withstand panel loading. Older or weaker structures may have lower weight tolerances.
  • Roof Accessibility – Installers will require safe access routes to the roof location that can accommodate components and tools.
  • System Layout – Allowances must be made for positioning of all structural elements, panels, inverters and related components.
  • Shading – Nearby structures or roof elements that could cast shadows on panels should be considered.
  • Weather Loads – Snow, wind and rainfall levels determine design wind and snow load requirements.
  • Soil Conditions – For ground mounts, soils must be evaluated for suitability to anchor foundation components.
ConsiderationFactorEffect
Building TypeMaterial strength <br> Roof pitchWeight limits <br> Mounting options
AccessibilityPathways <br> SafetyInstallation <br> Maintenance
ShadingNearby structures <br> Roof elementsSolar interruption

Analysis software models these parameters to tailor optimized, code-compliant mounting structural specifications.

VI. Analysis and Reporting

Analysis and Reporting

Detailed structural analysis and reporting ensure solar mounting systems meet safety and performance standards throughout their 25+ year lifetimes.

  • Software Modeling like STAAD analysis the building specs, layouts, component ratings and environmental factors to engineer code-compliant mounting specifications.
  • Structural Reports document all structural design elements, recommended hardware specifications, layouts, and electrical component integration guidance.
  • Installation Manuals provide step-by-step mounting and wiring instructions for field implementation.
DeliverableContentsValue
Structural ReportSpecifications <br> Layouts <br> Hardware detailsCustomized design basis
Installation ManualMounting instructions <br> Electrical layoutsCorrect field implementation

Through reporting and guidelines empower the proper system installation and inform ongoing maintenance requirements like bolt re-torquing for maximum safety and energy production.

Click Here For More Details

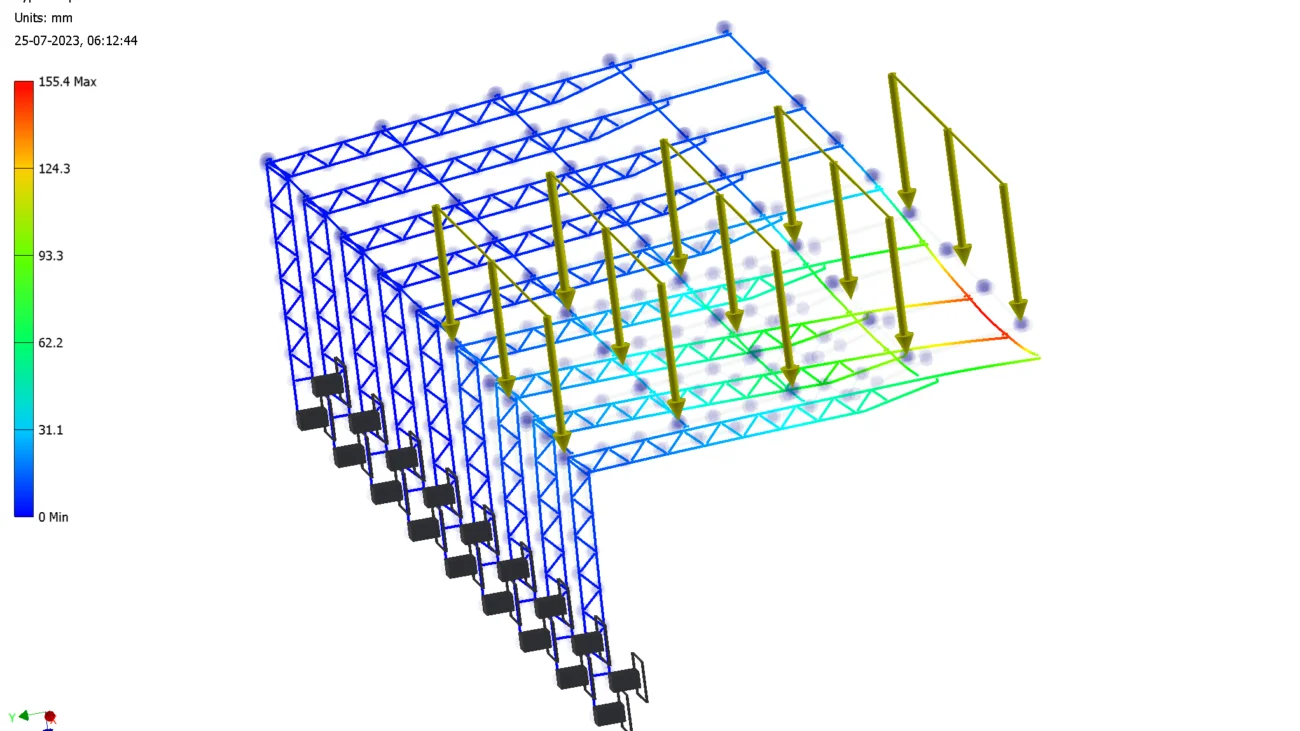

Solar Carport Frame Displacement Analysis

Structural Analysis for Solar Mounting Structures: Ensuring Safety and Stability

Solar mounting structures are the foundation of any solar power plant, and as such, their design, manufacturing, and installation must be done with the utmost care and attention to detail. One of the most critical elements of solar mounting structure design is structural analysis. This process involves analyzing the proposed structure to ensure that it can withstand the loads and forces it will be subjected to throughout its lifetime. In this blog, we will explore the importance of structural analysis for solar mounting structures and how it helps ensure safety and stability.

Why is structural analysis important for solar mounting structures?

Solar mounting structures are exposed to a variety of loads and forces, including wind, snow, and seismic activity. These loads and forces can cause the structure to deform, crack, or even collapse if the structure is not designed and manufactured to withstand them. Structural analysis is a critical step in the design process that helps to ensure that the proposed structure will be able to withstand these loads and forces without failure.

What are the different types of structural analysis?

There are several different types of structural analysis that can be used to evaluate solar mounting structures, including linear and nonlinear analysis, static and dynamic analysis, and linear and nonlinear buckling analysis.

Linear and nonlinear analysis: Linear analysis assumes that the structure’s behavior is linear and predictable, while nonlinear analysis takes into account the nonlinear behavior of the structure, such as buckling and plastic behavior.

Static and dynamic analysis: Static analysis assumes that the structure is in a state of equilibrium, while dynamic analysis takes into account the effect of time-varying loads and forces.

Linear and nonlinear buckling analysis: Linear buckling analysis assumes that the structure will buckle in a predictable and linear manner, while nonlinear buckling analysis takes into account the nonlinear behavior of the structure during buckling.

Which type of structural analysis is best for solar mounting structures?

The type of structural analysis that is best for a solar mounting structure will depend on the specific loads and forces that the structure will be subjected to. For example, if the structure will be exposed to high winds, dynamic analysis may be required. Similarly, if the structure will be located in an area prone to earthquakes, a seismic analysis may be necessary. It is important to consult with a structural engineer to determine the appropriate type of structural analysis for your solar mounting structure.

How is structural analysis conducted?

Structural analysis is typically conducted using computer-aided design (CAD) software. The designer will input the loads and forces that the structure will be subjected to into the software, and the software will then calculate the behavior of the structure under these loads and forces. The software will also generate detailed reports and drawings that the designer can use to evaluate the strength and stability of the structure.

In Conclusion,

Structural analysis is a critical step in the design and manufacturing of solar mounting structures. It helps to ensure that the structure will be able to withstand the loads and forces it will be subjected to throughout its lifetime, and that it will be safe and stable for the life of the solar power plant. By working with a structural engineer, solar power plant designers and manufacturers can ensure that their structures are designed and manufactured to the highest standards of safety and stability.
